Using Revit MEP or AutoCAD MEP we can take your 2D drawings, CAD files or PDF's, and input the mechanical, electrical or plumbing systems into an actual 3D model.

This model allows for the use of collision detection software (AutoCAD Navisworks) to locate areas of conflict within the building model.  Once the clashes have been located, they can easily be resolved in the 3D model prior to actual construction of the building, saving time and money.

Below are a few examples of some MEP drawings.  Click on the image to view it full size, use the back button on your browser to return to this page.

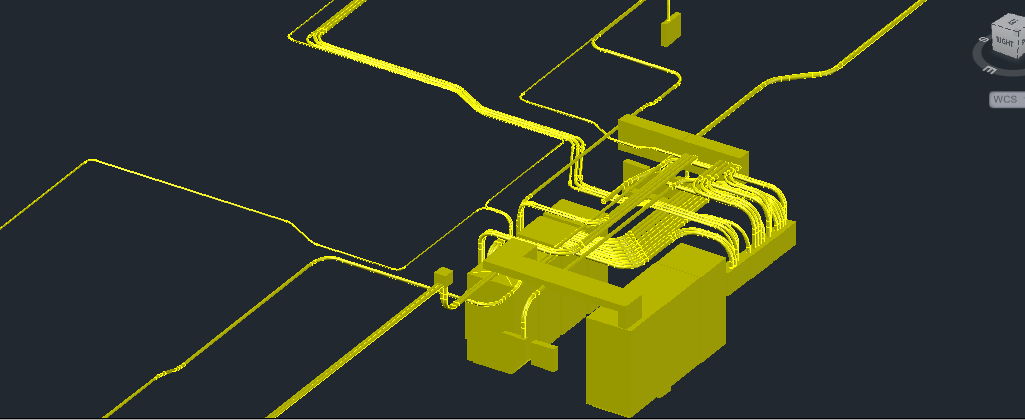

Conduit runs from the electrical room in a building renovation in New York, NY.

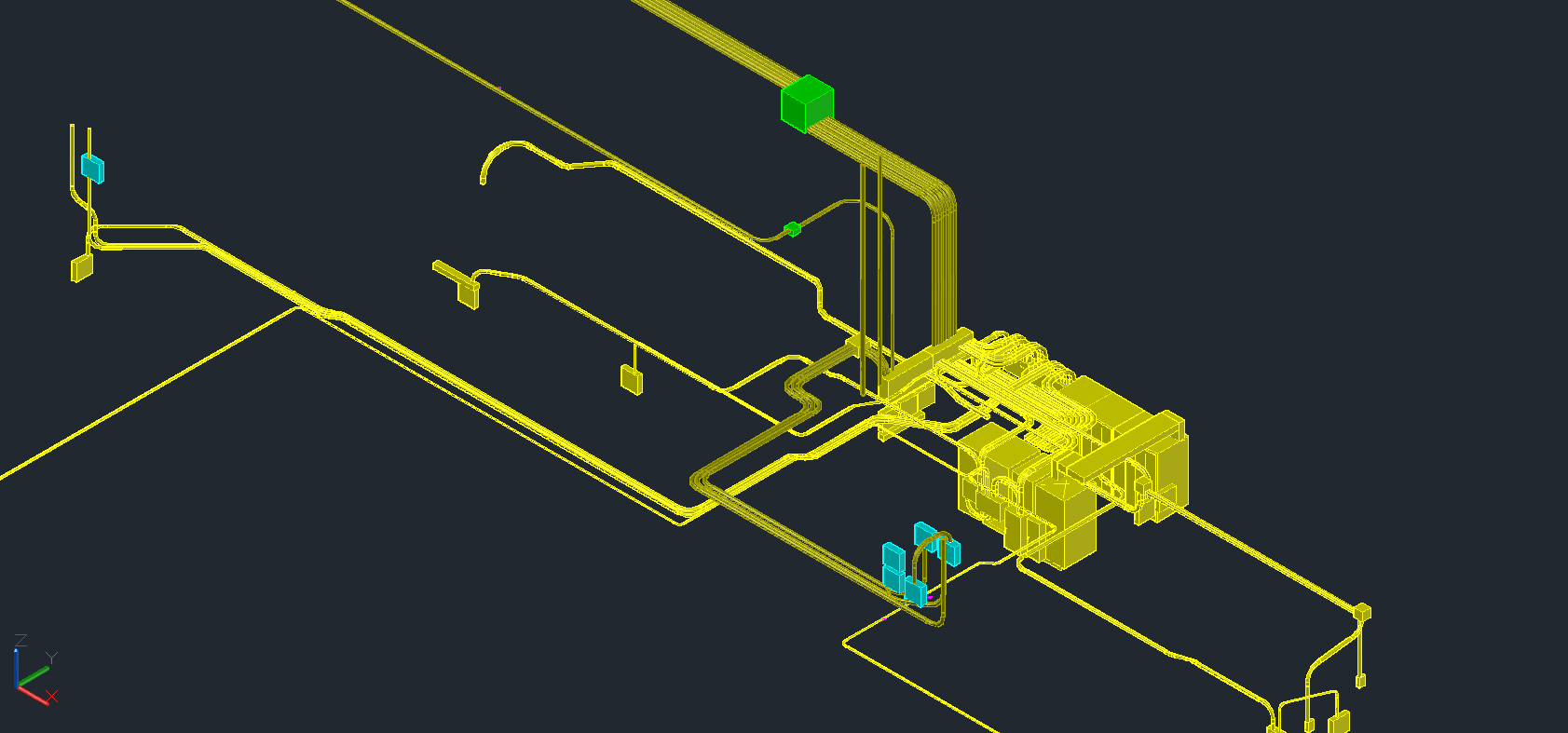

Conduit runs from the electrical room in a building renovation in New York, NY.

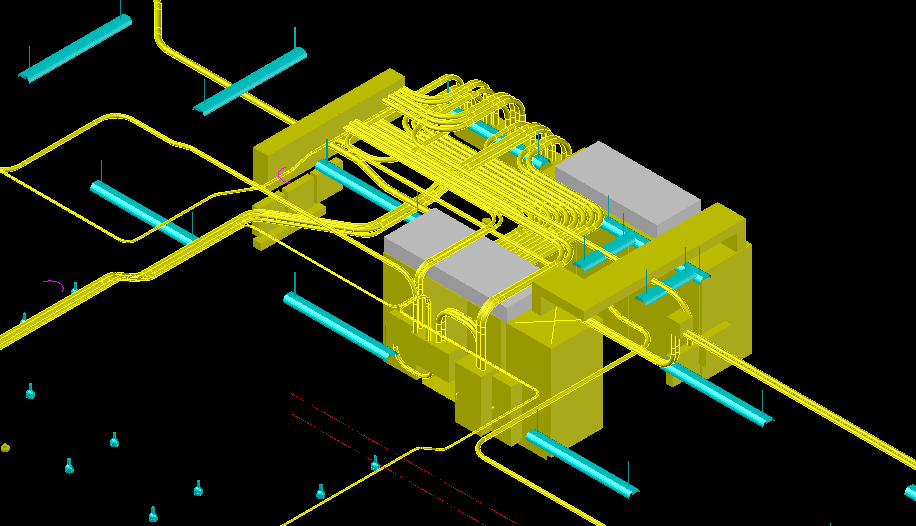

Electrical room layout, equipment ducts and conduits, in a building renovation in New York, NY.
